Products Description
Solar powered well pumps adopt advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%. We have solar powered water well pump with 12V/24V/48V.
Features and Advantages
- Oil filled motor, stable&reliable running with pressure regulating membrane.
- Energy-saving and environment-protected green products.
- High technique products adopting MPPT.
- 100% copper wire, cold-rolled silicon steel sheet, advanced brushless DC motor.
- Installation in 4” or larger boreholes.
Application Limits
- Max. Ambient temperature<40℃.
- Sand content (in mass fraction) up to 0.01%.
- Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L.
- PH 6.5 to 8.5.
Specification
| SKU | ATO-SWP-12V80 |
| Shipping weight | 2kg-15kg |
| Warranty | 2 years |
| Brand Name | ATO |
| Place of Origin | China |
| Horsepower | 1hp/2hp/3hp….to 50hp (Customized) |
| Pressure | Low pressure |
| Cable Length | 2M |
| Voltage | 12V/24V/48V DC (Optional) |
| Motor | Brushless motor |
| Power Source | Electric, Solar Energy |
| Outlet Size | 3″ |
| Supply Ability | 15000 Piece/pieces per Month |
| Speed | 4000rpm |
| Material of shaft | 304 stainless steel |
| Required open circuit voltage (VOC) of solar panel | ＜50V DC |
| Required power of solar panel | ≥1.3*pump power |
| Efficiency | 45% |

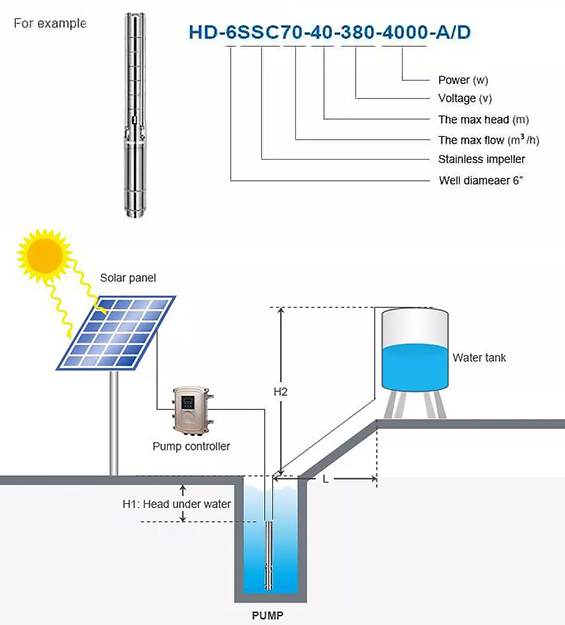

Solar water pump installation drawing:
Tips: 3 important points for solar water pump installation
- The DC controller must match with the recommended solar water pump. Don’t use the controller for other solar water pumps.
- For the perfect performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
- Because of the power loss of cable, try to use the shortest cable when installing a solar water pump. While using longer cable, don’t use single-wire to connect solar water pump and DC controller. For example, while the cable length between controller and 12V solar water pump is shorter than 30m, the cable size should be at least 2mm2. While over 30m, the cable size should be at least 4mm2.
